File:Na v1.1.4 protoshield layout.png
Jump to navigation
Jump to search
Size of this preview: 483 × 599 pixels.
Original file (800 × 992 pixels, file size: 226 KB, MIME type: image/png)

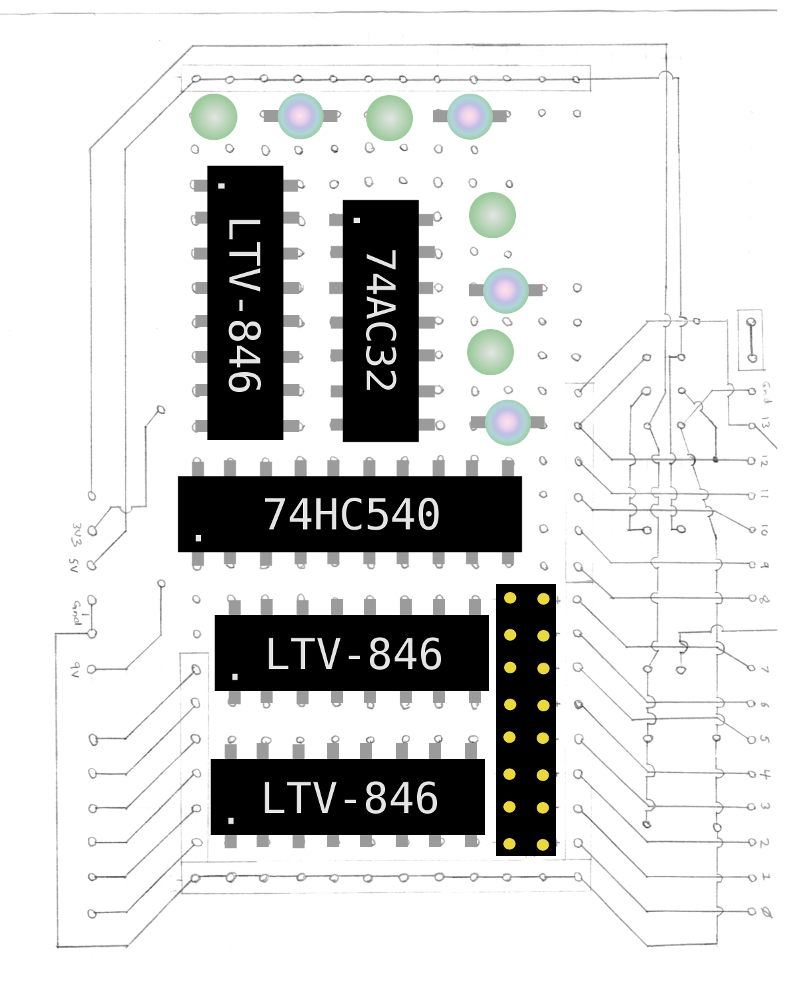

Four-port Node Assassin v1.1.4, Protoshield variant board layout. Yes, it's pretty crappy, but it gets the idea across. Most of the wiring, resistors and diodes will need to share pin underneath the PCB.
