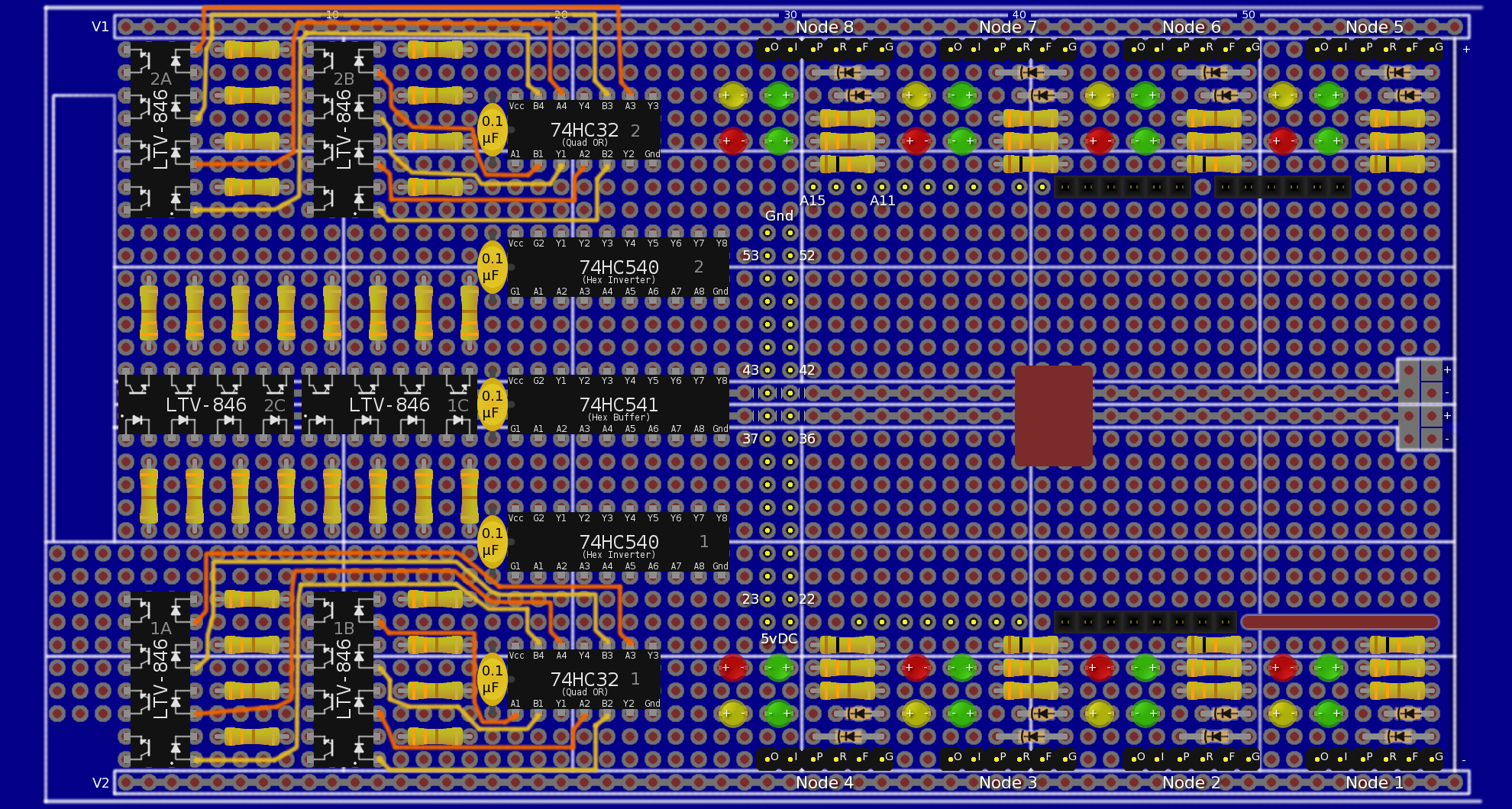

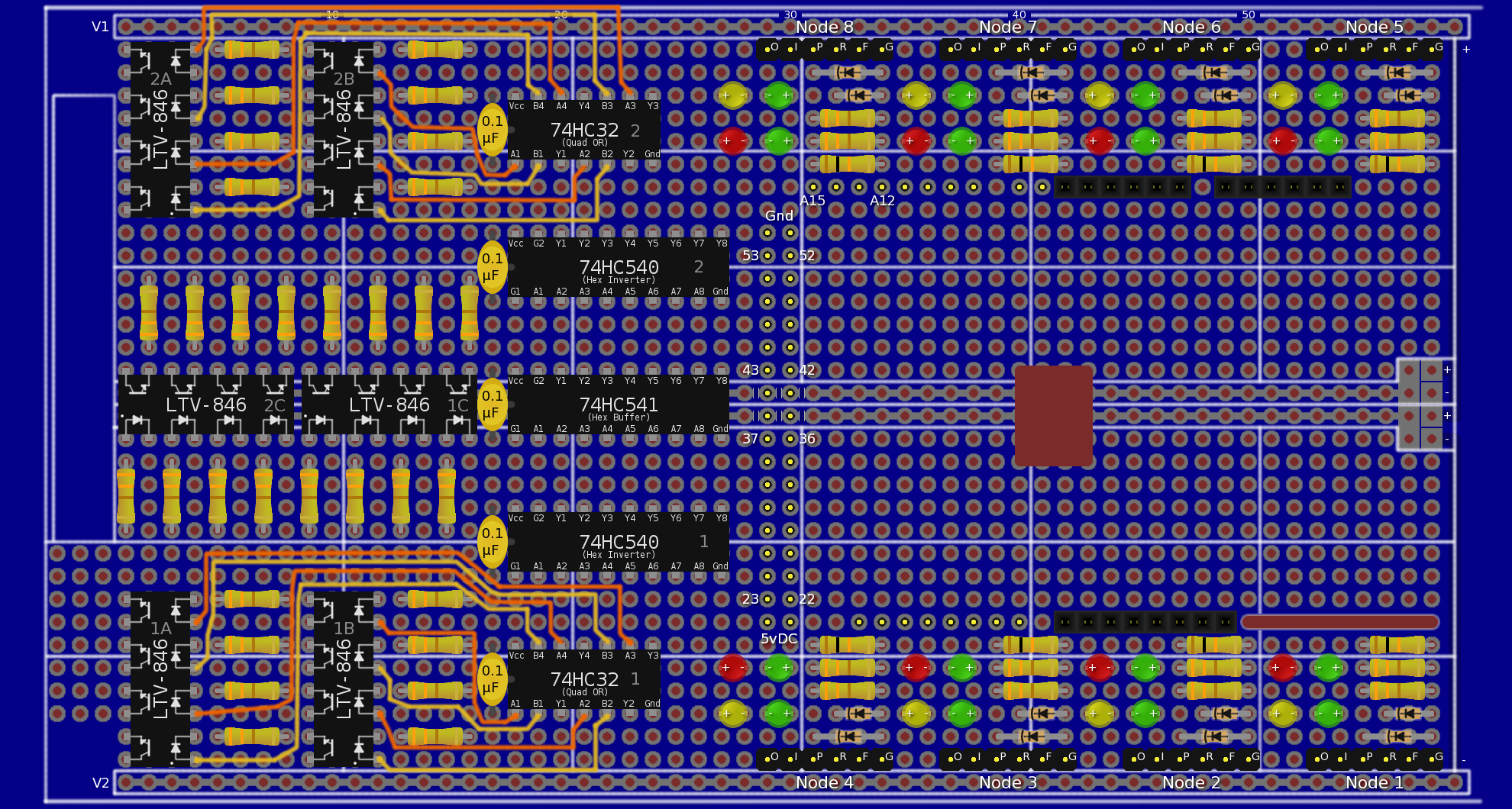

Node Assassin v1.2.1 - Opto anodes to quad ORs
File history
Click on a date/time to view the file as it appeared at that time.
| Date/Time | Thumbnail | Dimensions | User | Comment | |
|---|---|---|---|---|---|
| current | 23:40, 12 June 2011 | | 1,980 × 1,060 (529 KB) | Digimer (talk | contribs) | Changed the pin name from A11 to A12. |
| 03:49, 25 February 2011 |  | 1,980 × 1,060 (528 KB) | Digimer (talk | contribs) | Fixed the position on the power and reset pins from Node 5 on the OR DIP. | |
| 14:00, 8 February 2011 |  | 1,980 × 1,060 (529 KB) | Digimer (talk | contribs) | Node Assassin v1.2.1 - Opto anodes to quad ORs |
