File:Node Assassin v1.1.4 15 LED fence fenced.png
Jump to navigation
Jump to search
Size of this preview: 800 × 472 pixels. Other resolution: 1,152 × 680 pixels.
Original file (1,152 × 680 pixels, file size: 144 KB, MIME type: image/png)

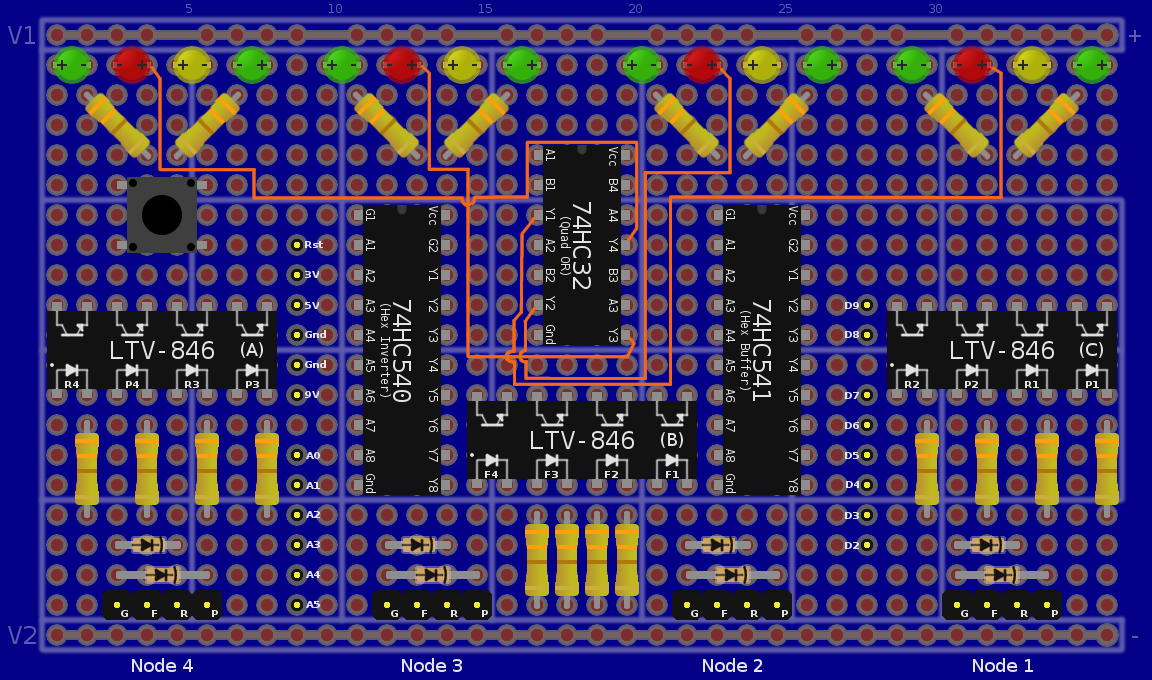

Node Assassin v1.1.4 - Top View - 74HC32 Outputs to LED - Fence - Fenced
File history
Click on a date/time to view the file as it appeared at that time.
| Date/Time | Thumbnail | Dimensions | User | Comment | |
|---|---|---|---|---|---|
| current | 03:17, 16 May 2010 | | 1,152 × 680 (144 KB) | Digimer (talk | contribs) | Updated to v1.1.4.1 - Added 330 ohm resistors to node power feed lines and removed the analog pin A5 to make room. |
| 01:43, 16 April 2010 |  | 1,152 × 680 (141 KB) | Digimer (talk | contribs) | Node Assassin v1.1.4 - Top View - 74HC32 Outputs to LED - Fence - Fenced |
