 Node Assassin :: Protoshield v.4

I've not been able to find the OEM's website for this product. Please let me know if you can find it.

This is an Arduino compatible prototyping shield I got from Creatron in Toronto. It is used with the v1.1.3 Node Assassin design. If you can't find this board, be sure that the one you substitute has plenty of independent pads!

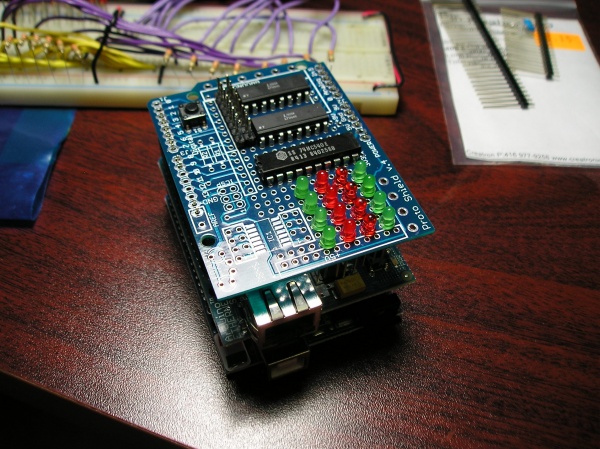

Arduino Proto-Shield v.4 - Sorry, I didn't take a picture of the board by itself. Will update this pic once I get a new one in.



Input, advice, complaints and meanderings all welcome!
